SIZE: 7600×2260×2890 mm
Overall Operating Weight: 7800 KG
Max. Digging Depth: 4000 mm
Digging Bucket Capacity: 0.3 m³
Max Digging Power: 38 KN
Loading Lifting Capacity: 2500 KGS
Loader Bucket Capacity: 1.3 m³
Swing Angle of backhoe: 190
Engine: 85 kw and 2400 r/min

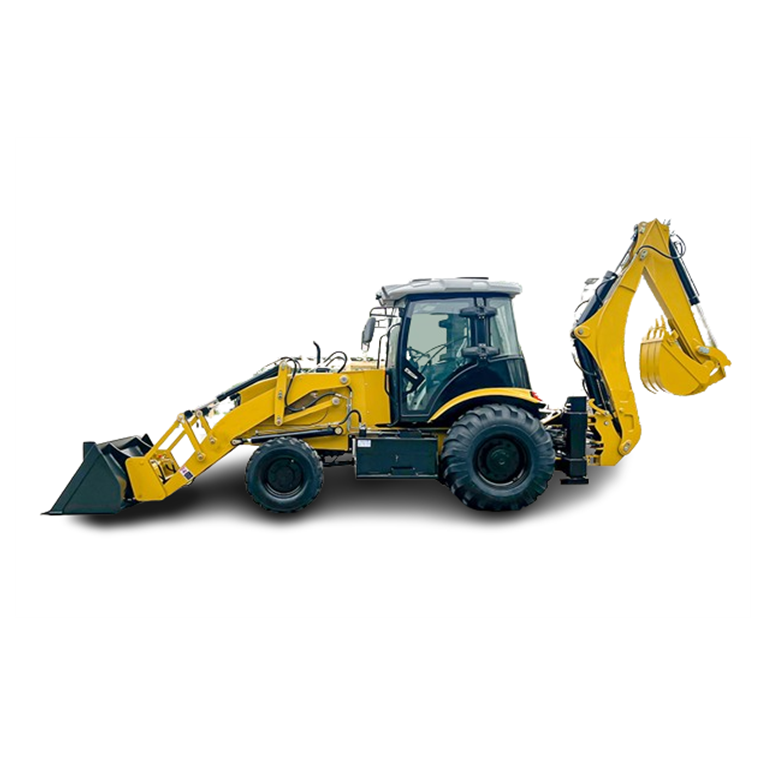

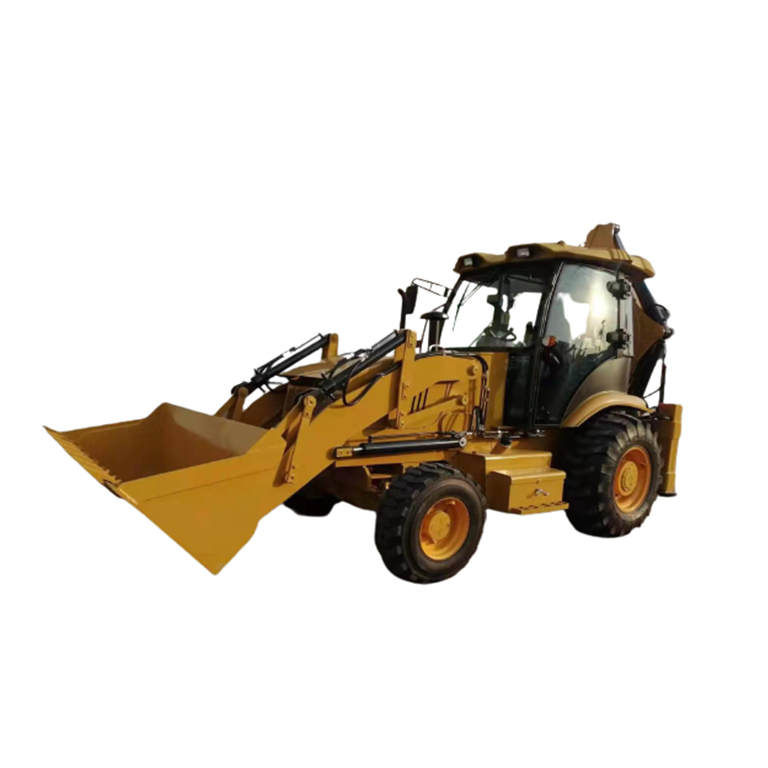

Specification of Backhoe loader
| Model | LC 40-28 |
| Wheel base | 2250 mm |
| Max.Pulling Force | 39 KN |
| Min. Ground Clearance | 300 mm |
| Pressure of the system | 22 MPa |
| Max.Speed | 36 Km/h |
| Max. climbing angle | 25° |
| Min. turning radius | 6581 mm |
Pressure of wheel | 0.22 Mpa |
Gears | Four Gears Ahead, Four Gears Astern |
Main features:
1. The whole machine has a compact structure and a reasonable layout.
2. Beautiful appearance, reasonable humanized design,
3. The performance of the whole machine reaches the advanced level at home and abroad, and the hydraulic system adopts a well-known domestic brand.
4. The shovel ensures that the original loading function is not affected. The excavation part is folded as a counterweight, and the loading part is used as a chassis support during excavation. The two parts do not affect each other and can also help each other. The excavator is designed in the form of a slide, which has the advantages of folding side excavation and free sliding.
The whole machine can be equipped with various auxiliary tools according to user needs
