SIZE: 5800*1850*2700 mm
Overall Operating Weight: 4800 KGS
Max. Digging Depth: 2800 mm
Max Digging Radius: 4600 mm
Digging Bucket Capacity: 0.15 m³
Max Digging Power: 28 KN
Loader Max Dumping Height: 3300 mm
Loader Bucket Capacity: 0.8 m³
Breakout Force: 36 KN
Engine: 55 kw and 2400 r/min

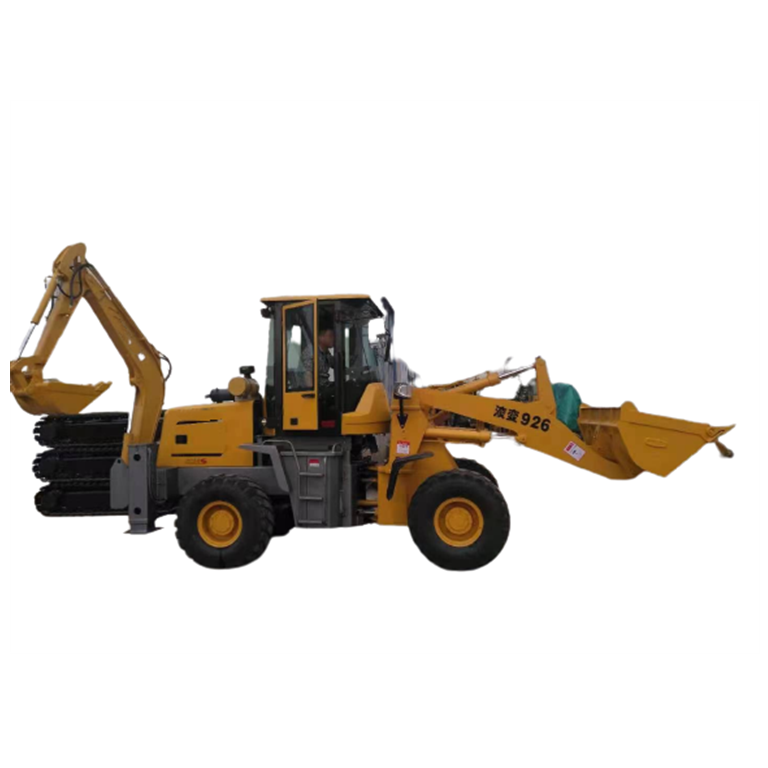

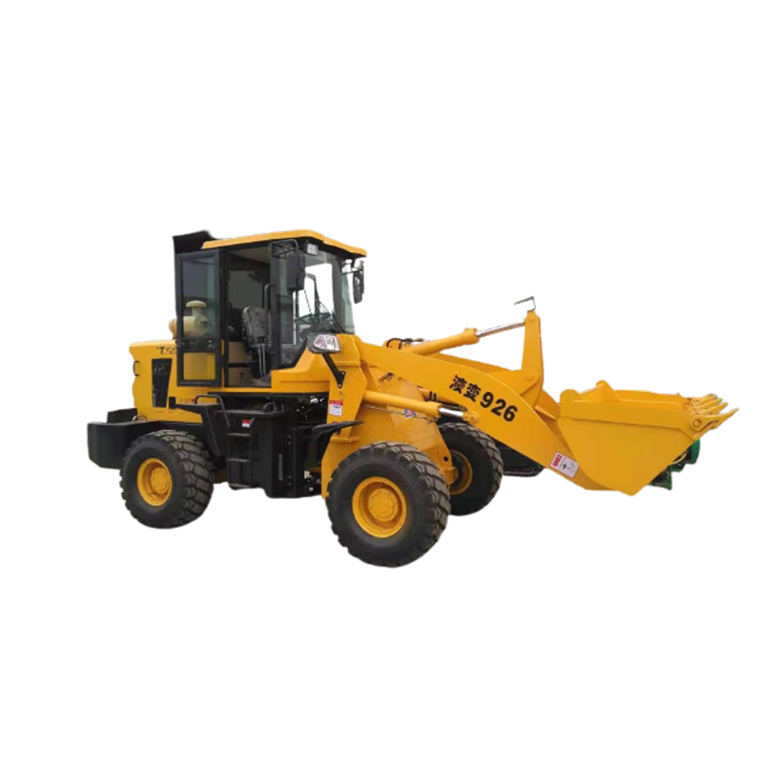

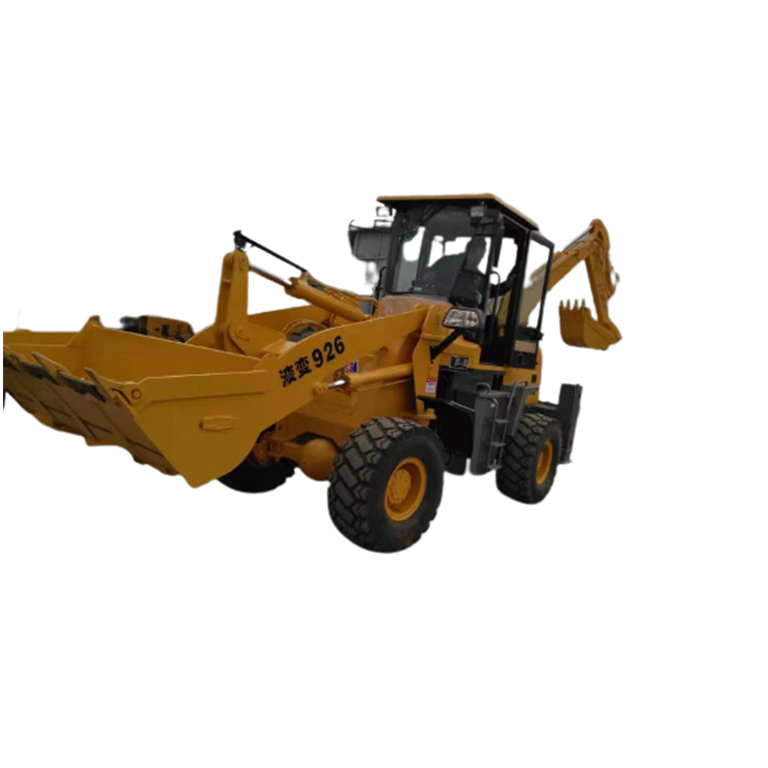

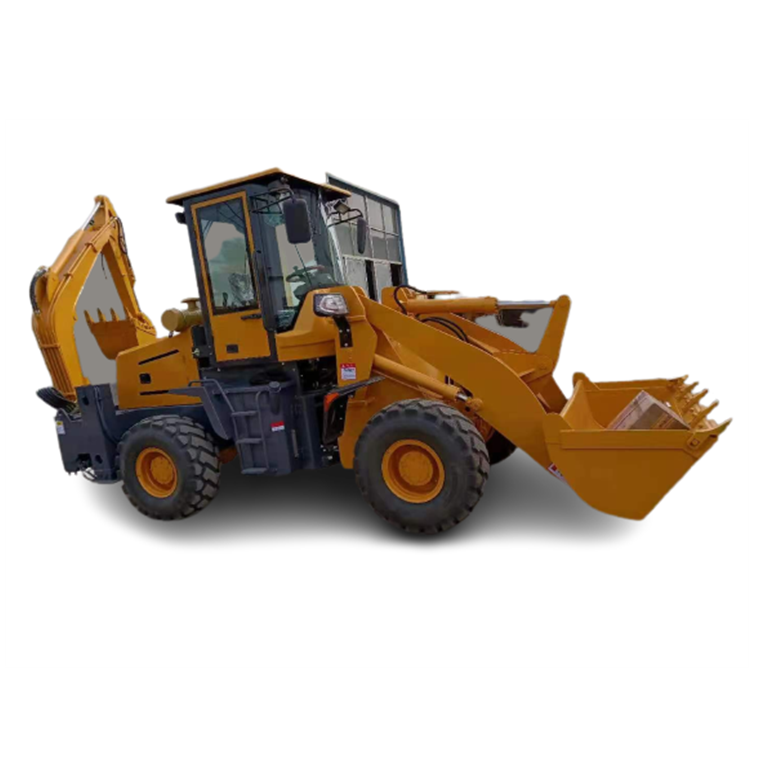

Specification of Backhoe loader
| Model | LC 15-26 |
| Wheel base | 2150 mm |
| Wheel track | 1550 mm |
| Min. Ground Clearance | 220 mm |
| Pressure of the system | 16 MPa |
| Max.Speed | 26 Km/h |
| Max. climbing angle | 25° |
| Min. turning radius | 4500 mm |
| Tires | 23.5-16 |
| Fuel tank | 20 L |
Main features:
1. The whole machine has a compact structure and a reasonable layout.
2. Beautiful appearance, reasonable humanized design,
3. The performance of the whole machine reaches the advanced level at home and abroad, and the hydraulic system adopts a well-known domestic brand.
4. The shovel ensures that the original loading function is not affected. The excavation part is folded as a counterweight, and the loading part is used as a chassis support during excavation. The two parts do not affect each other and can also help each other. The excavator is designed in the form of a slide, which has the advantages of folding side excavation and free sliding.
The whole machine can be equipped with various auxiliary tools according to user needs
