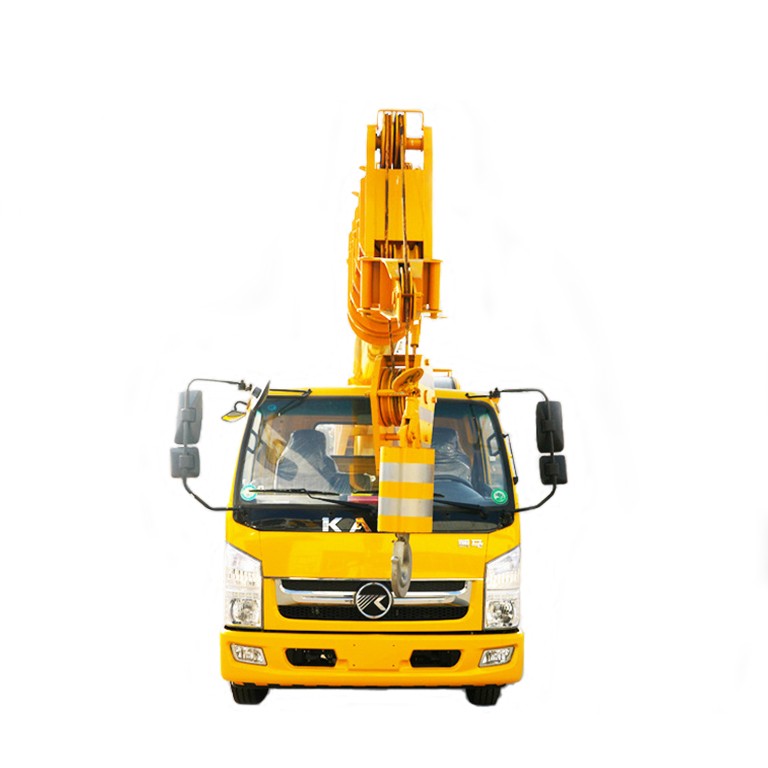

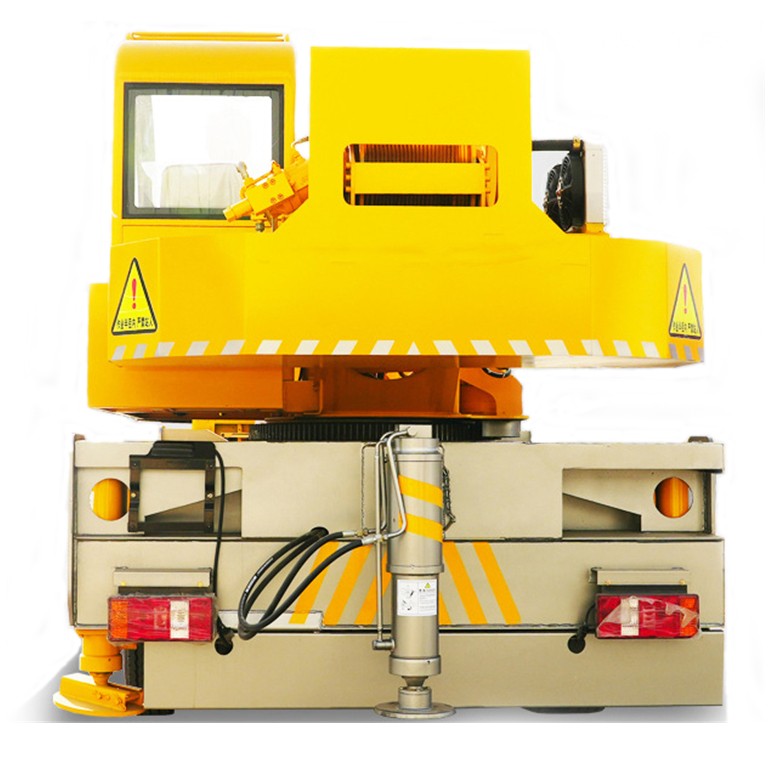

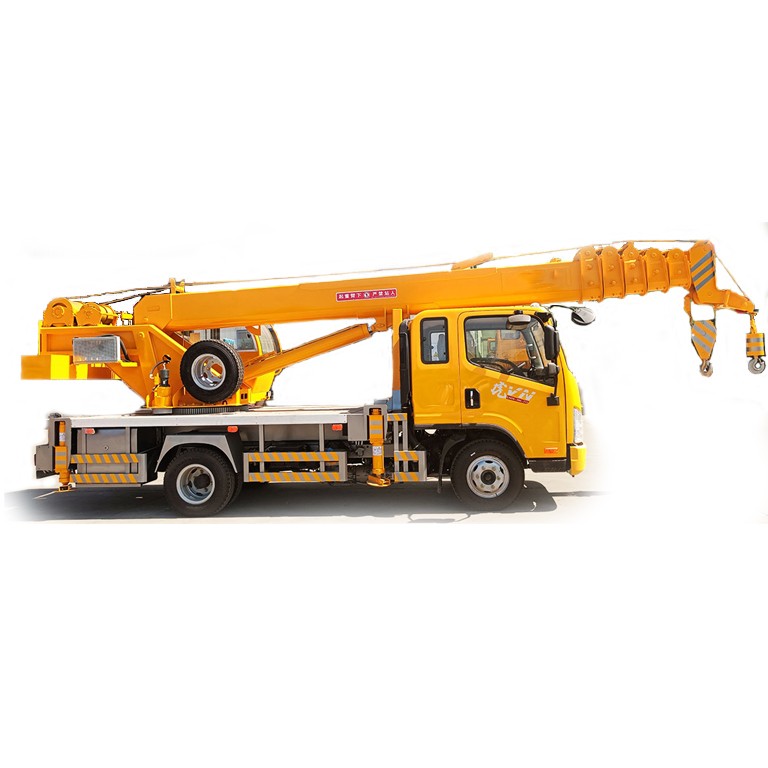

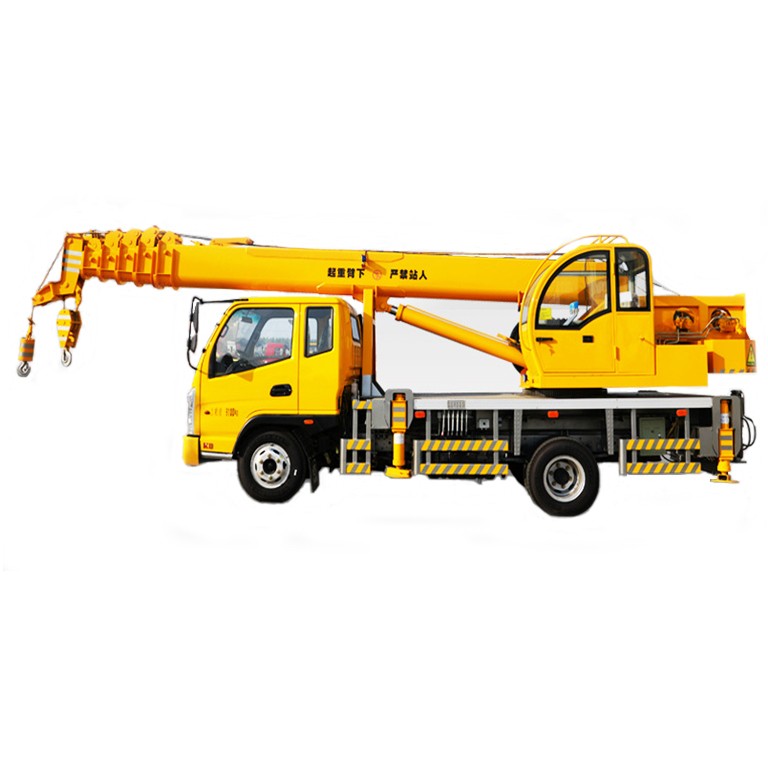

8 Tons Truck Crane

Rated Lifting Weight: 8000 kgs
Max Lifting Height: 30 m
Main Lifting Mechanism: 8 tons Hoister
Outrigger: 5 hydraulic outrigger
Hydraulic Pump: Single or Double
Outrigger Longitudinal Span: 4360 mm

EMAIL

The specification of 8 tons Truck Crane

Chassis Model	Dongfeng Dolica or KAMA
Engine	QUANCHAI or FAWDE D4B1 EFI IntercooledSupercharged
Gearbox model	WLY High and Low Speed Gearbox
Tire	750-R16
Suspension Arm Type	5m-7 section or 6m-6 section or 7m-5 section
Engine Powe	95KW (130HP)
Radius of Rotation	2.2 m
Boom Telescopic Type	Synchronize Telescopic
