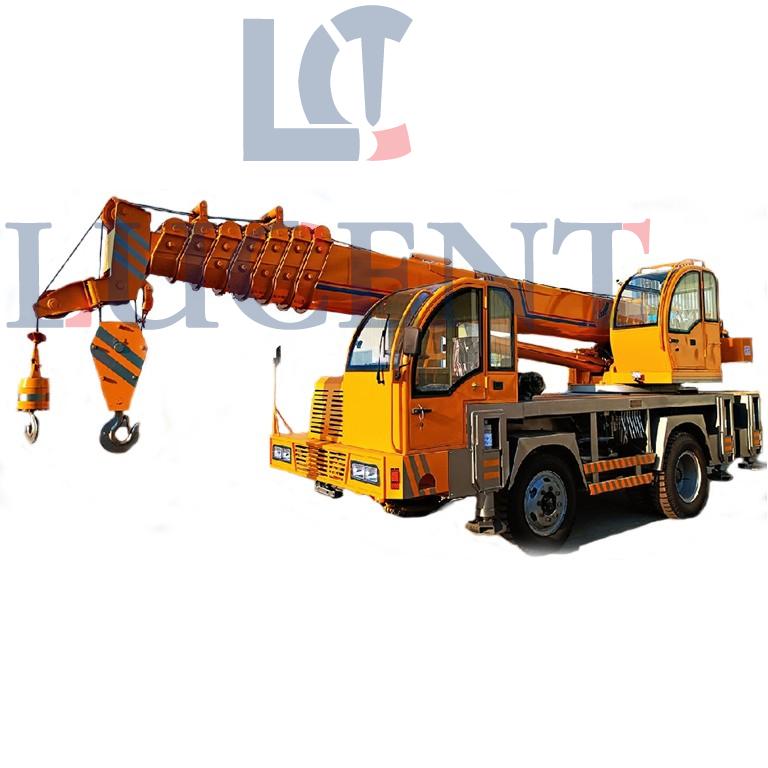

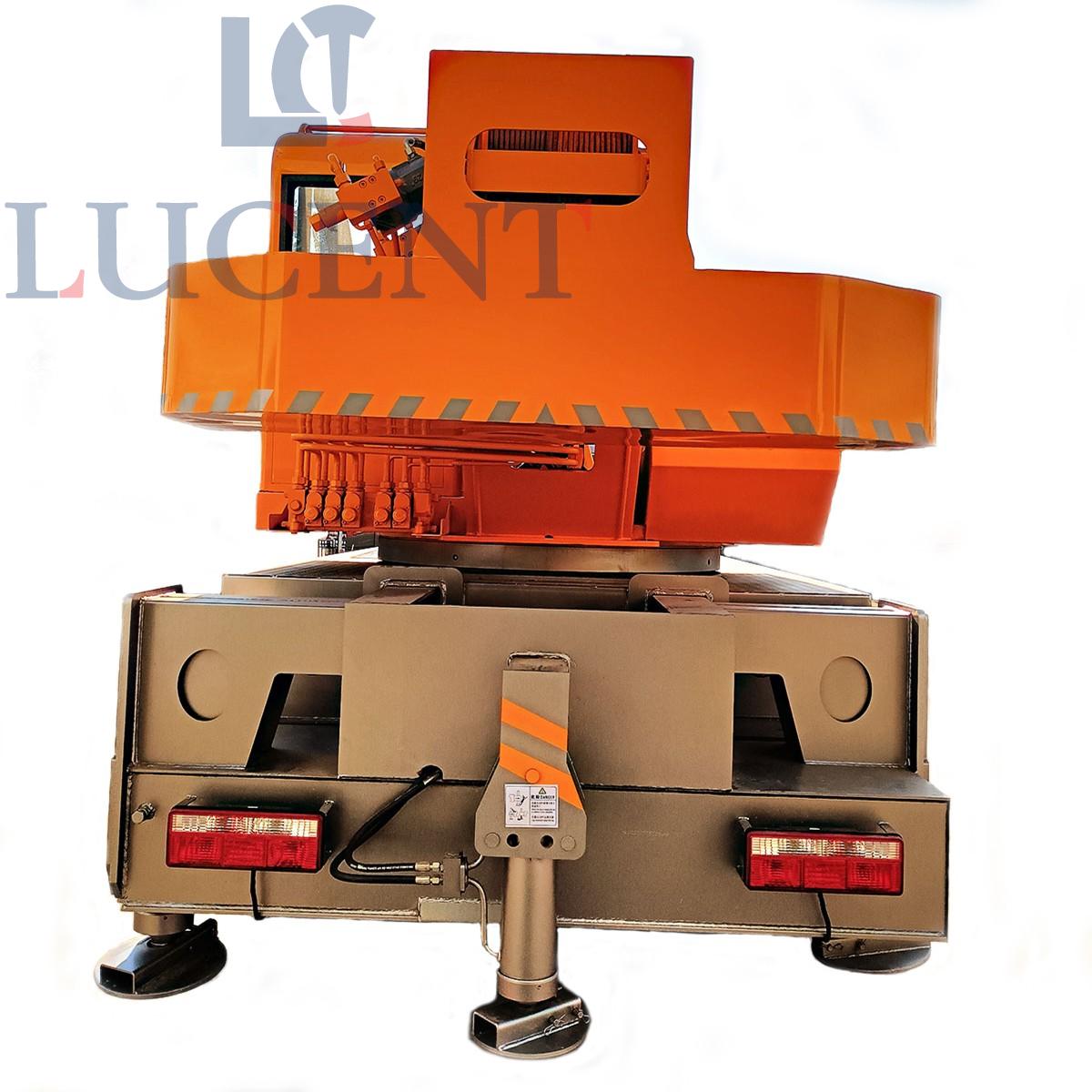

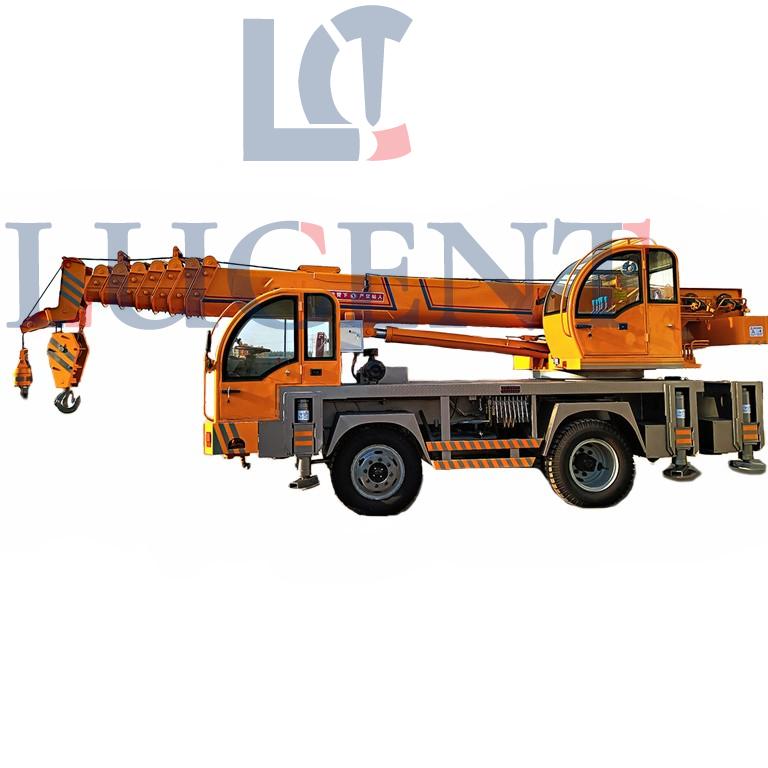

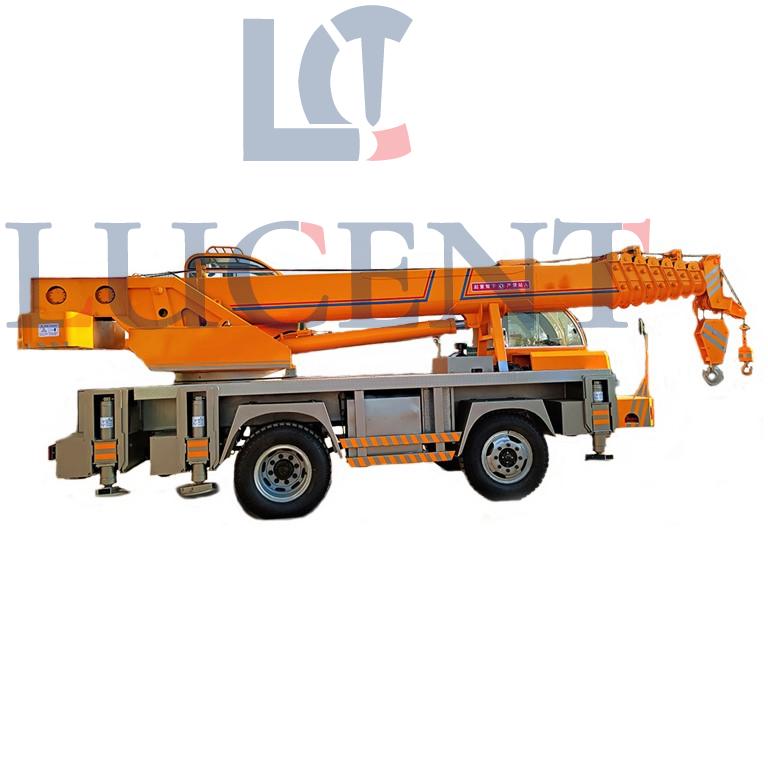

16 Tons self made Truck Crane

Rated Lifting Weight: 16000 kgs
Max Lifting Height: 42 m
Main Lifting Mechanism: 16 tons Hoister
Auxiliary Lifting Mechanism: 12 tons Hoister
Outrigger: 7 hydraulic outrigger
Hydraulic Pump: Double
Outrigger Longitudinal Span: 5500 mm

EMAIL

The specification of 16 tons Truck Crane


Chassis Model

Self Make

Engine

YUNNEI 4108 supercharged engine

Gearbox model

WLY High and Low Speed Gearbox

Tire

900-R20

Suspension Arm Type

7m-7 section

Engine Powe

102KW (140HP)

Radius of Rotation

2.1 m

Vehicle weight

17000KGS
